Fireproof butterfly dampers provide an optimal fire protection solution for small diameter ventilation ducts. Equipped with a 72°C fusible link that automatically releases the two semi-circular blades during fire, ensuring complete closure and preventing smoke or flame propagation.

Certified EI60S according to EN 13501-3, these dampers guarantee fire resistance for one hour at 300Pa. Suitable for horizontal or vertical installation in rigid walls, flexible walls, or floors. Available in diameters from 100 to 200 mm.

Robust steel construction with fiber silicate blades and intumescent strip for perfect sealing. Compatible with FCU SC end of range switches for position monitoring.

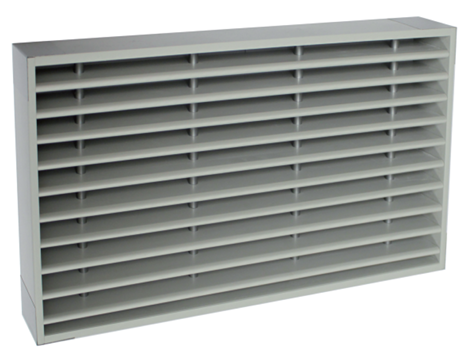

The GE60 fire resistant grilles provide effective fire protection for building compartmentation. Designed with PVC blades that expand at approximately 100°C, they form a tight barrier against flame propagation.

Certified according to European standard EN 1364-1 and classified EI60 according to EN 13501-3, these fire grilles guarantee fire resistance up to 1 hour. Vertical installation only, with blades in horizontal position.

Easy to install in fire resistant walls using standard mortar, FP402 silicone or BP plaster. Maintenance-free with a free air passage of approximately 70%.

Fire resistant air exhaust valves with 70°C thermal fuse and EI60S fire resistance class. Perfect for ventilation purposes and fire compartmentation in walls with 60-minute fire resistance.

Steel construction with white RAL 9010 powder coating, featuring ceramic felt disc and return spring. CE certified according to EN15650-2010 standard with EI60(veo->i)S classification.

Easy installation with included mounting frame. Service pressure up to 300Pa. Compatible with FDC DVS-B+K end of range switch for enhanced safety in HVAC systems.

Circular fire dampers with fire resistance of 60 minutes (EI60S). When temperature exceeds 72°C, the fusible link breaks and the damper closes automatically. The intumescent material around the fireblade swells to ensure perfect sealing against fire and smoke propagation.

Made of galvanized steel with MFUS manual operating mechanism including blade position indicator. Compatible with ventilation ducts from Ø100 to Ø315 mm. Can be installed horizontally or vertically in rigid walls, flexible walls or floors.

Certified according to EN 13501-3 standard (EI90 at 300Pa in rigid wall/floor, EI60 at 500Pa in flexible wall). Airtightness class C according to EN 1751. Available accessories: FDCU MFUS position switch and BP fire resistant plaster.

Motorized rectangular fire dampers with exceptional EI120S fire resistance. Designed to provide maximum protection against flame and smoke propagation in ventilation systems.

Equipped with a Belimo 230V actuator featuring position indication and 70°C thermal fuse. The calcium silicate blade ensures perfect sealing during fire conditions thanks to the intumescent material that expands when exposed to heat.

Certified according to EN 13501-3 standard, these dampers can be installed in rigid walls, flexible walls (with IFW kit) or floors. Available dimensions from 200x100 to 800x600 mm for optimal fire safety in all your projects.
