Control valves & Dampers

  • VAV dampers with Belimo actuator

    The VAV-CSB damper with Belimo actuator provides precise control of variable or constant airflow in HVAC systems. Perfect for regulating temperature and air quality in rooms.

    Equipped with a Belimo MP controller allowing an operating range from 2 to 12 m/s and integrated flow measurement. The casing features an EPDM seal conforming to air tightness class C according to EN1751.

    Available in multiple diameters (100-630 mm), this airflow regulator can be configured via the Assistant App or ZTH tool. Available options: insulated version, ModBus/KNX communications.
    Application :
    Tertiary
    VAV dampers with Belimo actuator

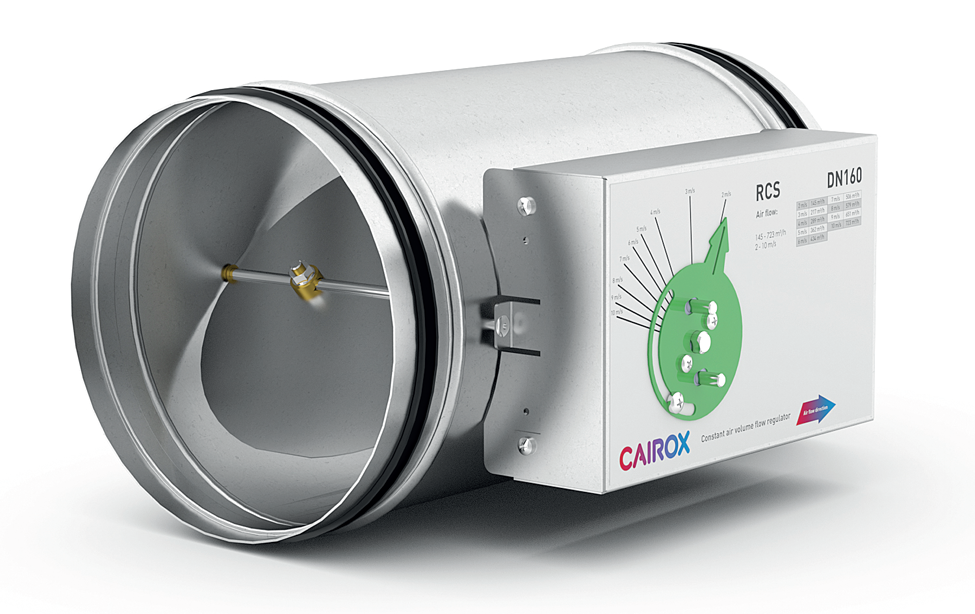

  • Constant air volume control dampers made of steel

    Constant air volume control dampers RCS made of galvanized steel provide autonomous regulation for ventilation systems. Designed to maintain constant airflow regardless of pressure variations in the ductwork.

    Operating without electrical power at pressures between 50 and 500 Pa, these regulators ensure regulation accuracy of ±10% for air velocities above 3m/s. Their setting scale offers ±4% accuracy.

    Available in diameters from 100 to 400 mm, they feature airtight class C connections complying with EN1751 standard and can be installed both horizontally and vertically in supply and extraction ducts.
    Application :
    Tertiary
    Constant air volume control dampers made of steel

  • Iris dampers

    IRIS air volume control dampers are circular diaphragm devices made of galvanized steel. Designed for ventilation and air conditioning systems.

    Equipped with pressure measuring points on both sides for manometer connection and a selection graph sticker. The diaphragm ensures perfect accordance between the diameter indication on the handle and the valve opening.

    Available in sizes from Ø80 to Ø630 mm, these flow regulators are easily mounted between two ducts according to the installation instructions provided with each damper.
    Application :
    Tertiary
    Iris dampers

And many other products

This page represents only a selection of our most popular products. Find our wider selection and more specific products directly on one of our e-shops or contact us for information.
